Professional Padel & Tennis Court LED Lighting — Precision Meets Performance
Reapway delivers glare-free, energy-efficient LED lighting systems engineered specifically for padel
and tennis courts. From Europe to Southeast Asia — our sports lighting combines up to 190lm/W efficacy,
0% upward light, and EN12193-compliant uniformity.
Request Free Lighting Design
The Challenge

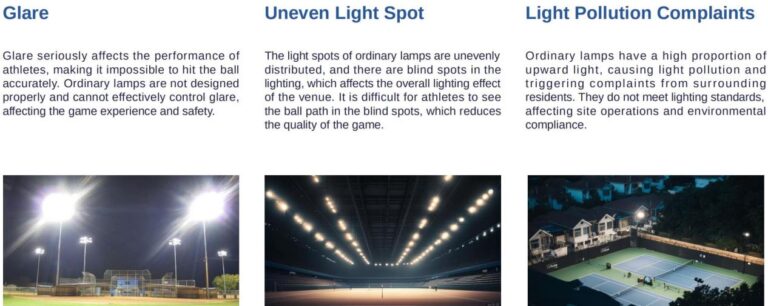

Common Lighting Problems on Padel & Tennis Courts
Ordinary floodlights create glare, blind spots, and light pollution. Here’s how each pain point costs you — and how Reapway solves them.
Glare Discomfort
Glare from poorly designed lamps seriously affects athletes’ performance, making it impossible to track the ball accurately. Players struggle with high lobs and fast shots.
Long Lead Times & Stock Issues
Many manufacturers operate on 4-8 week lead times, causing project delays. Stock-outs on key components stall court openings and revenue.
Precision Lighting for Every Court
From recreational padel to professional tennis tournaments — dedicated LED solutions engineered for each sport’s unique demands.

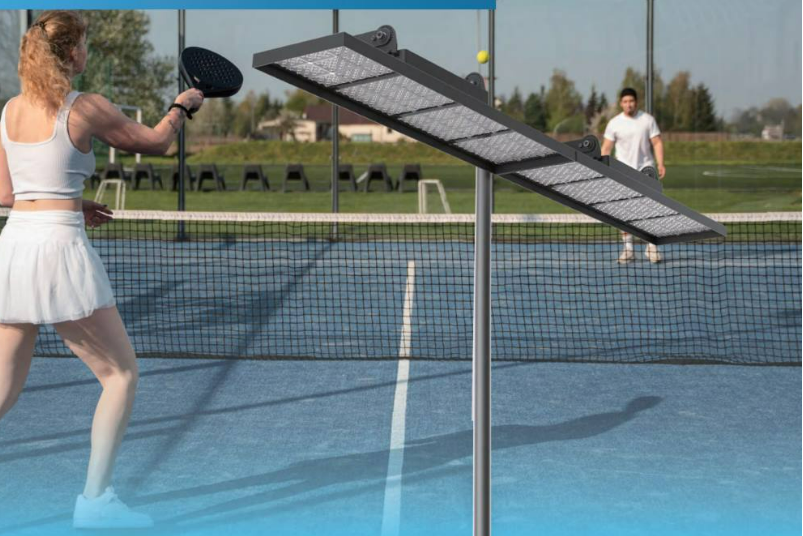

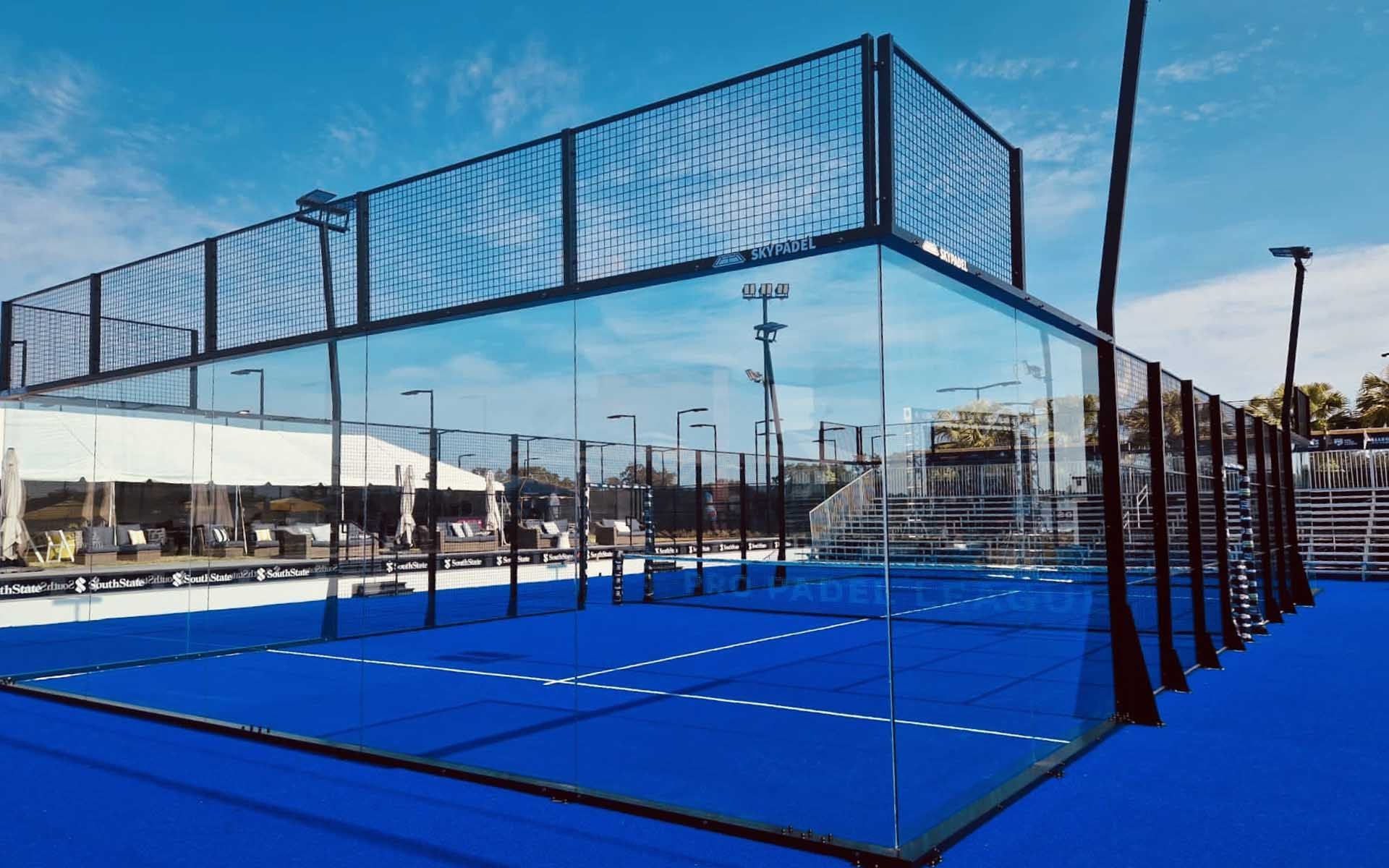

Outdoor Padel Court
0° horizontal installation, 0% ULR, UGR<19. Purpose-built for padel’s glass walls and fast ball speeds. IP65 tropical-ready.

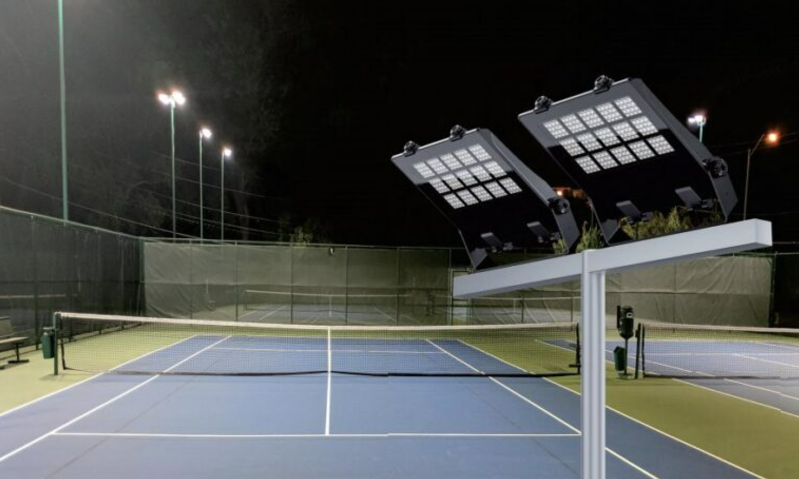

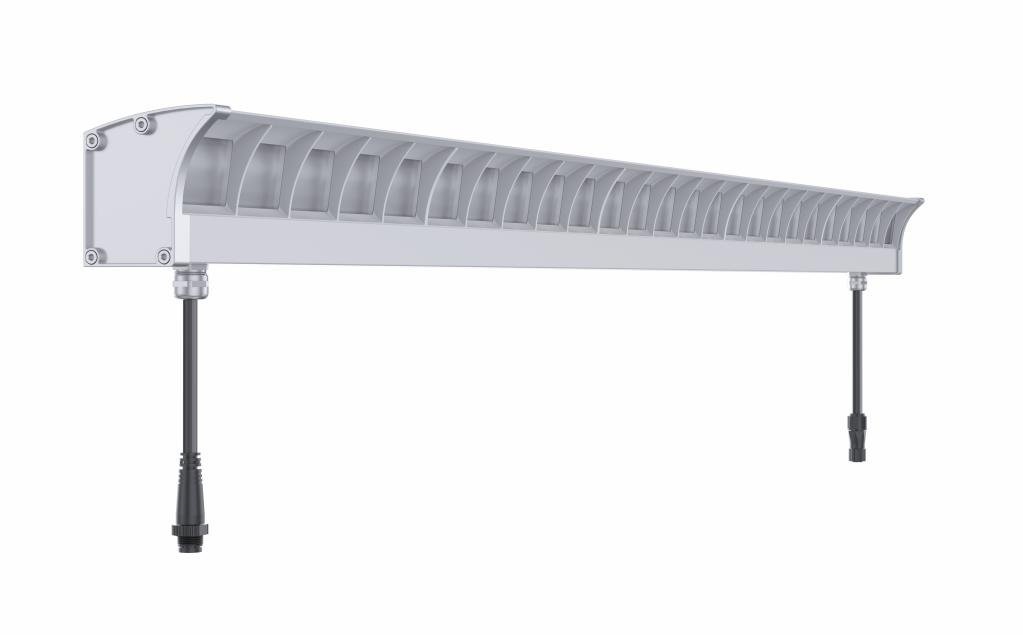

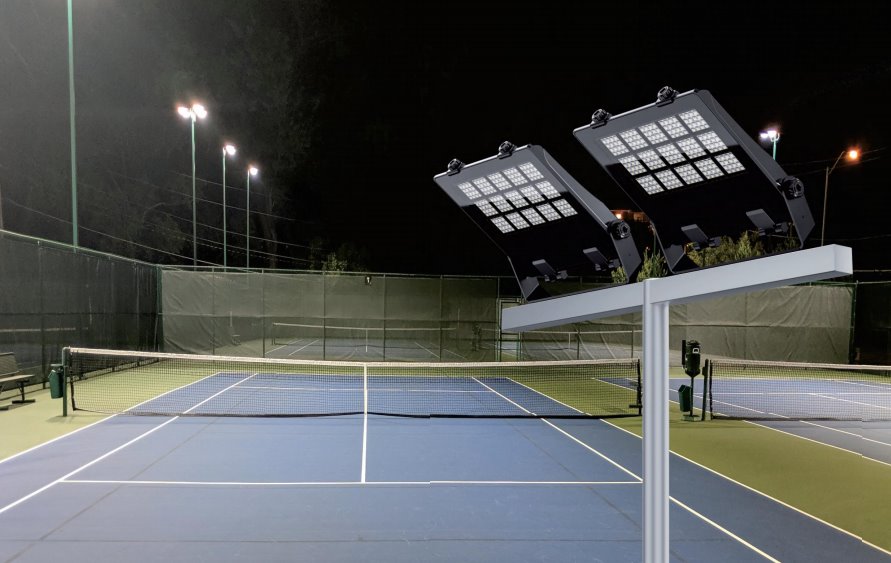

Tennis Court
BrightArc Linear series — no poles, no machine, no engineers. One P70 beam angle for all court classes. Philips LED + Osram driver.

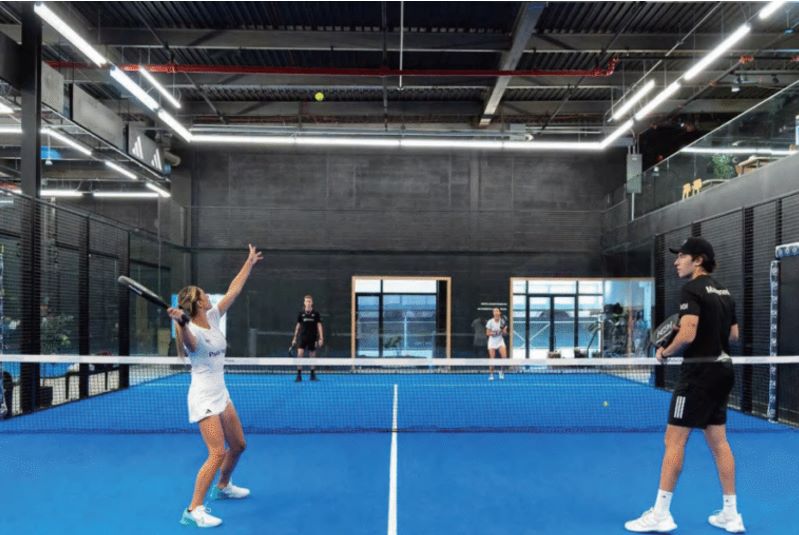

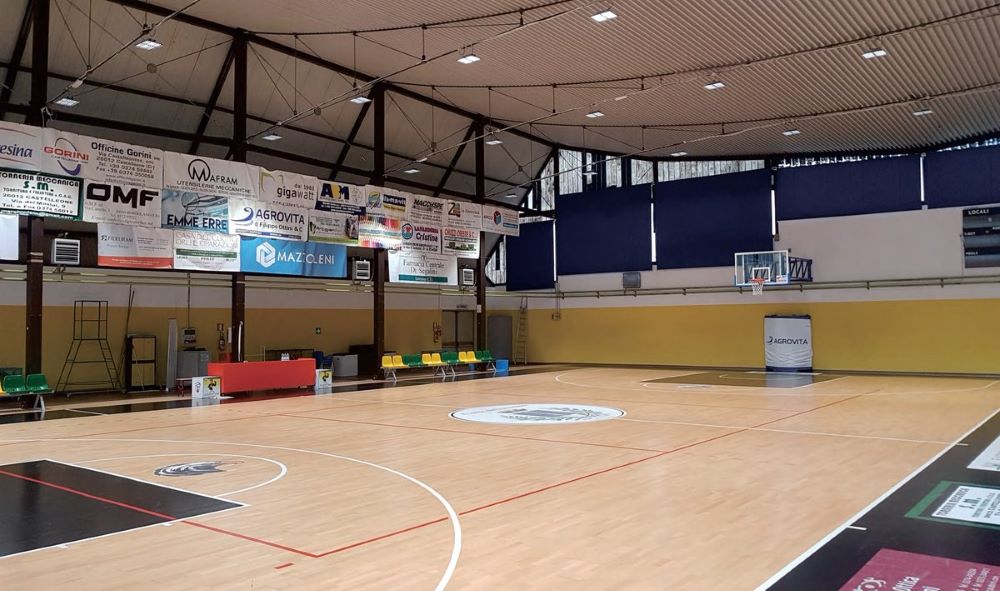

Indoor Padel Court
The Luster Series eliminates glare and uneven light on padel courts. Its linear lens and cut‑off design ensure zero light waste—full illumination, ultra‑low glare, all on court.
Multi-Court Complexes
ModuLite modular high-mast system with DALI/DMX dimming. Super flexible wattage (500-1500W). Ideal for large padel & tennis centers.

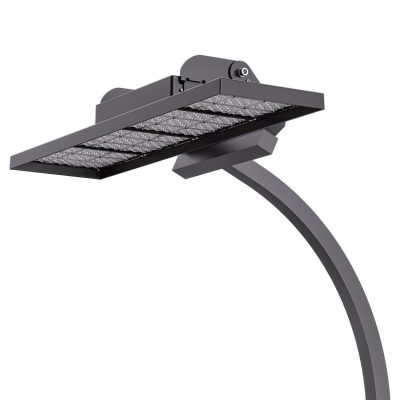

Stadium & Competition

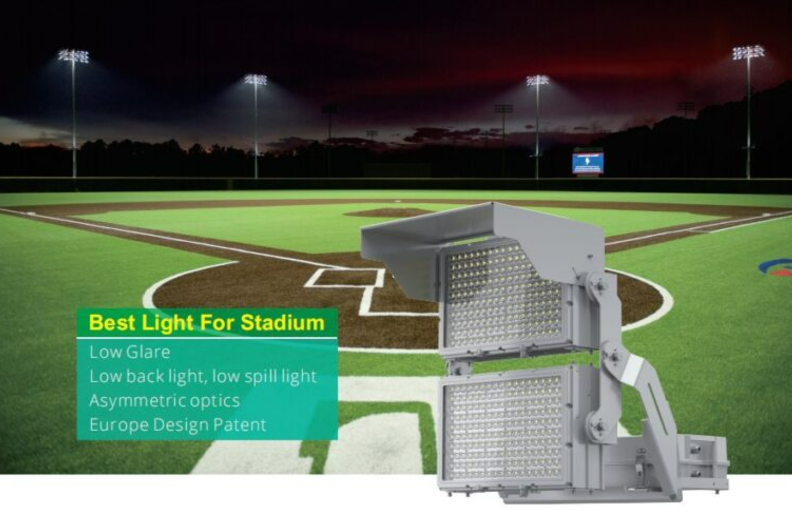

PreciShot professional stadium high-mast light — laser sight aiming, rotatable visor. 7-year warranty. 500-1800W, up to 170lm/W.
Pickleball Court
Compact court, dense layouts — requires ultra-low glare and uniform distribution. GuideLux & AuraGleam series deliver UGR<19 for fast-paced play.
Deeplumen Series — Born for Outdoor Padel Court Lighting
Square housing with asymmetric optical lens. UGR as low as 15 with optional grille. The definitive LED high bay for padel courts worldwide.
| Wattage | 60W / 100W / 120W / 150W / 200W / 240W |
| Max Efficacy | 190 lm/W (rated) |
| Luminous Flux | 28,500 – 47,500 LM |
| Optics | 100°×60° Symmetric / Asymmetric |
| Protection | IP65 (EN IEC 60598-1) · IK10 (IEC 62262) |
| Lifespan | L70B10 > 102,000 hrs (TM-21 based on LM-80) |
| Dimming | 1-10V / PWM / Triac / DALI-2 (optional) |
| Input Voltage | 100-277V, 50/60Hz · PF >0.95 · THD <8% |
| Surge Protection | 6kV differential mode / 6kV common mode |
| CRI / CCT | >80 / 3000K-6500K · MacAdam ≤5 |
| Warranty | 5 Years |

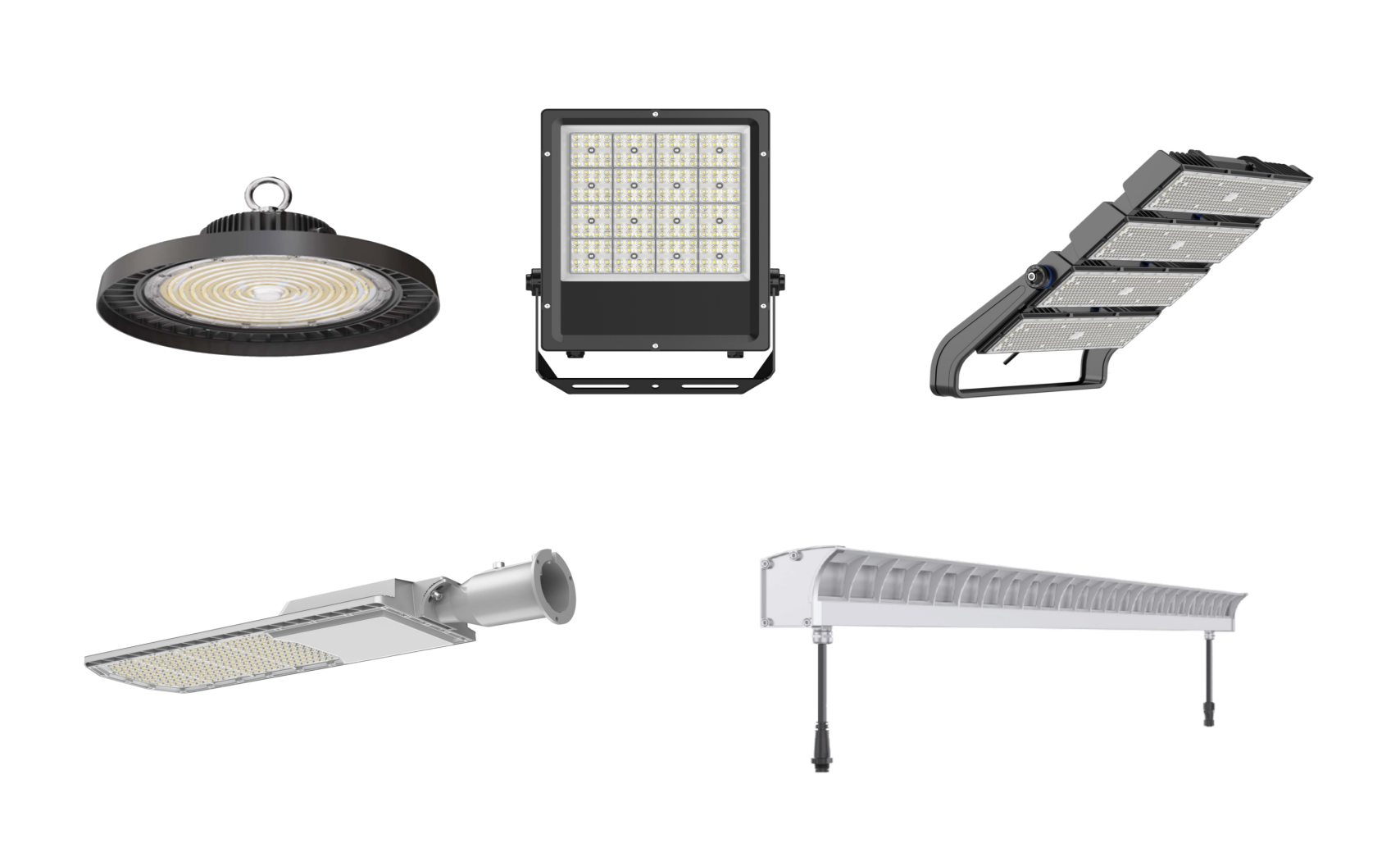

Complete LED Lighting Portfolio for Sports Fields
13 specialized series — from anti-glare play area lights to professional stadium high-mast floodlights. Every series engineered for specific court types, installation heights, and competition levels.
Series | Category | Wattage | Efficacy | UGR | Protection | Key Feature |
BrightArc Linear | Tennis Court Light | 30-80W | 150 lm/W | Anti-Glare | IP65 · IK08 | P70 Optics · Philips LED · Osram Driver |
DeepLume | Padel/Tennis Light | 60-240W | 190 lm/W | 15-22 | IP65 · IK10 | Square housing · Grille option · 100×60° |
Navigator | Multi-Purpose Floodlight | 100-300W | 160 lm/W | <21 | IP66 · IK08 | Precise light control · Event broadcasting |

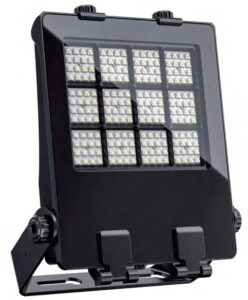

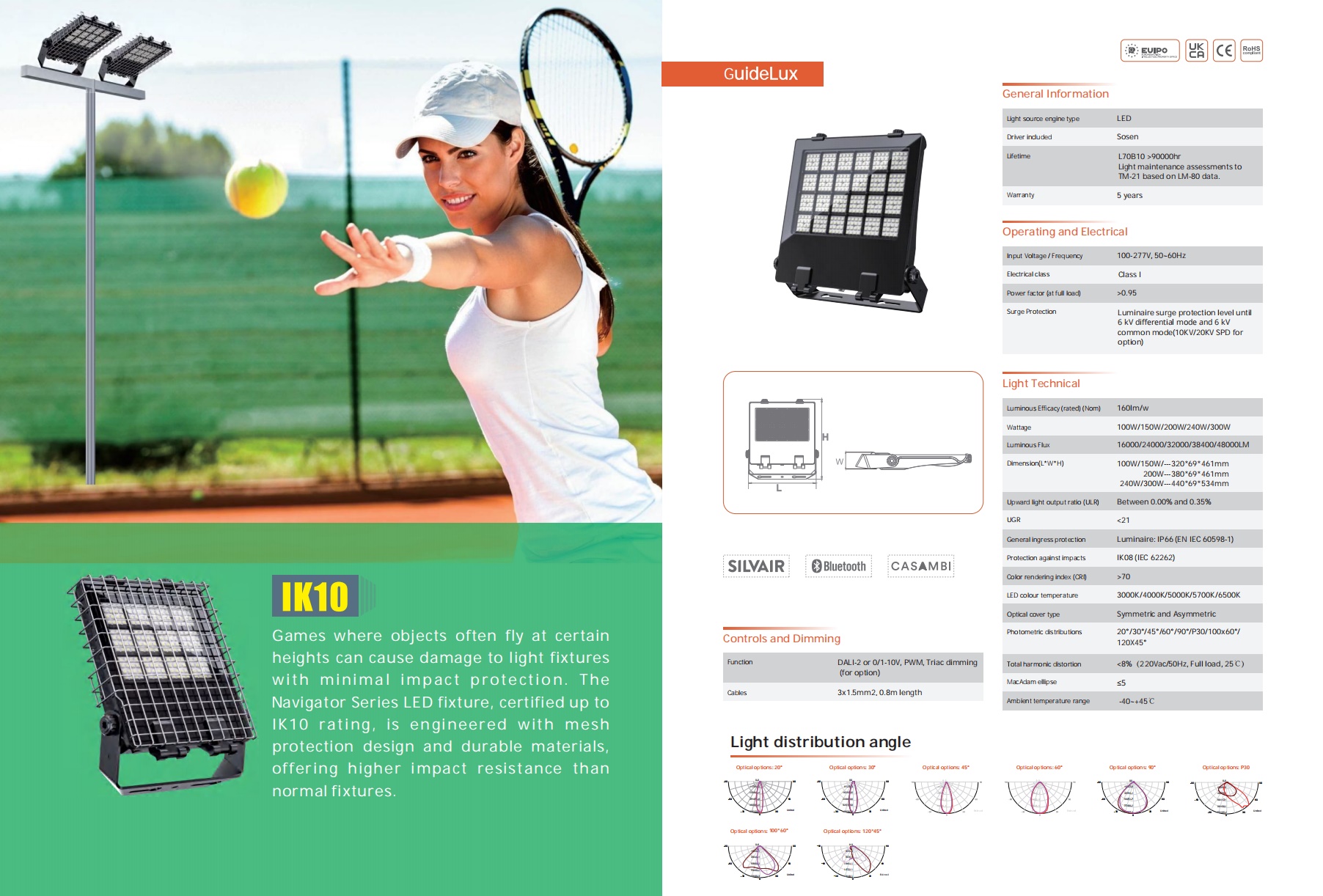

GuideLux | Anti-Glaring Floodlight | 100-300W | 160 lm/W | <21 | IP66 · IK08 | PMMA lens · Grille · Max homogeneity |
SoftGlare | Anti-Glaring Play Area Light | 60-360W | 160 lm/W | 19-21 | IP65 · IK10 | Stainless steel mesh · Ball hit protection |

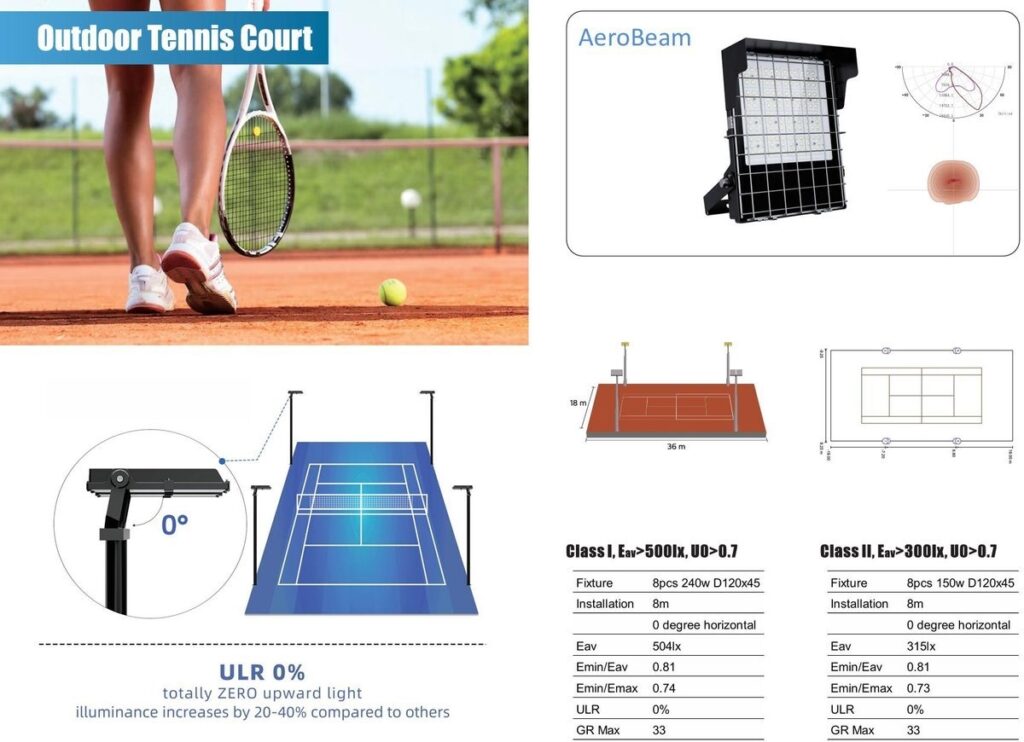

AeroBeam | High-Efficiency Floodlight | 100-400W | 160-180 lm/W | — | IP66 · IK08 | Remote CCT adjustable · Wide beam selection |
EnduroLux | Stadium Replacement Light | 250-1500W | 150 lm/W | — | IP66 · IK08 | 60% lighter · 40% more heat dissipation |
AuraGleam | Padel Court Light | 16-44W | 170 lm/W | — | IP65 · IK10 | Disruptive · P35 asymmetric · 0% ULR |
Real Projects
Proven Results on Real Courts
Measured lux levels, uniformity data, and direct athlete feedback — from Spain to Singapore.
🇪🇸 Madrid, Spain
Outdoor Padel Club — Madrid
Fixture 8 × 150W AeroBeam Floodlights
Installation 6m, 0° Horizontal
Average Lux 520 lx (Class I)
Uniformity Emin/Eav 0.84
ULR 0%
GR Max 28
Energy Savings 62%+ reduction
“The AeroBeam series Floodlights provided the ideal solution for our court in Madrid. Easy to install, great performance, and excellent support from the Reapway team.”
— Carlos Mendez, Club Owner, Madrid Padel Center

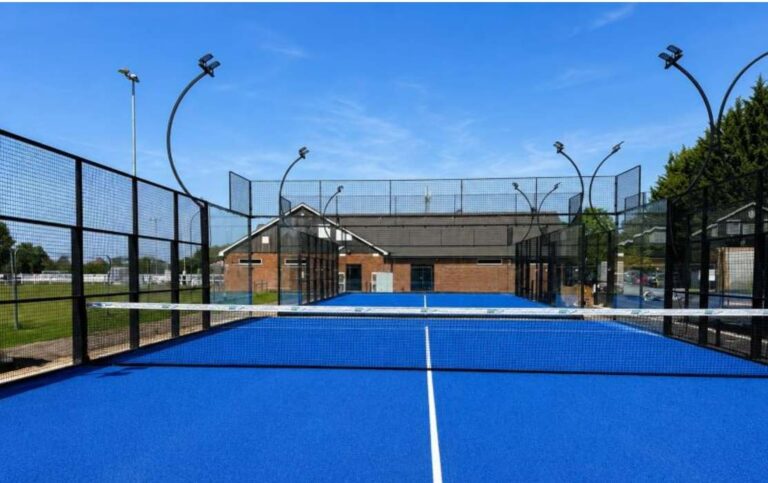

🇩🇪 Hamburg, Germany
Outdoor Padel Club — Hamburg
Fixture 8 × 150W DeepLume High Bay
Installation 6m, 0° Horizontal
Optics 100°×60° Asymmetric
Average Lux 562 lx (Class I)
Uniformity Emin/Eav 0.83
ULR 0%
Climate Northern European · All-Season
Energy Savings 65%+ reduction
“We installed DeepLume High Bays. The lighting is even, bright, and perfect for night games. Our players love it, and maintenance has been zero.
— Klaus Richter, Facility Manager, Hamburg Padel Club

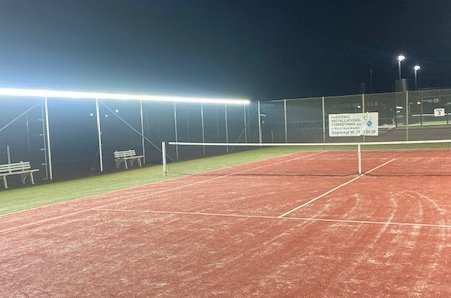

🇦🇹 Vienna, Austria

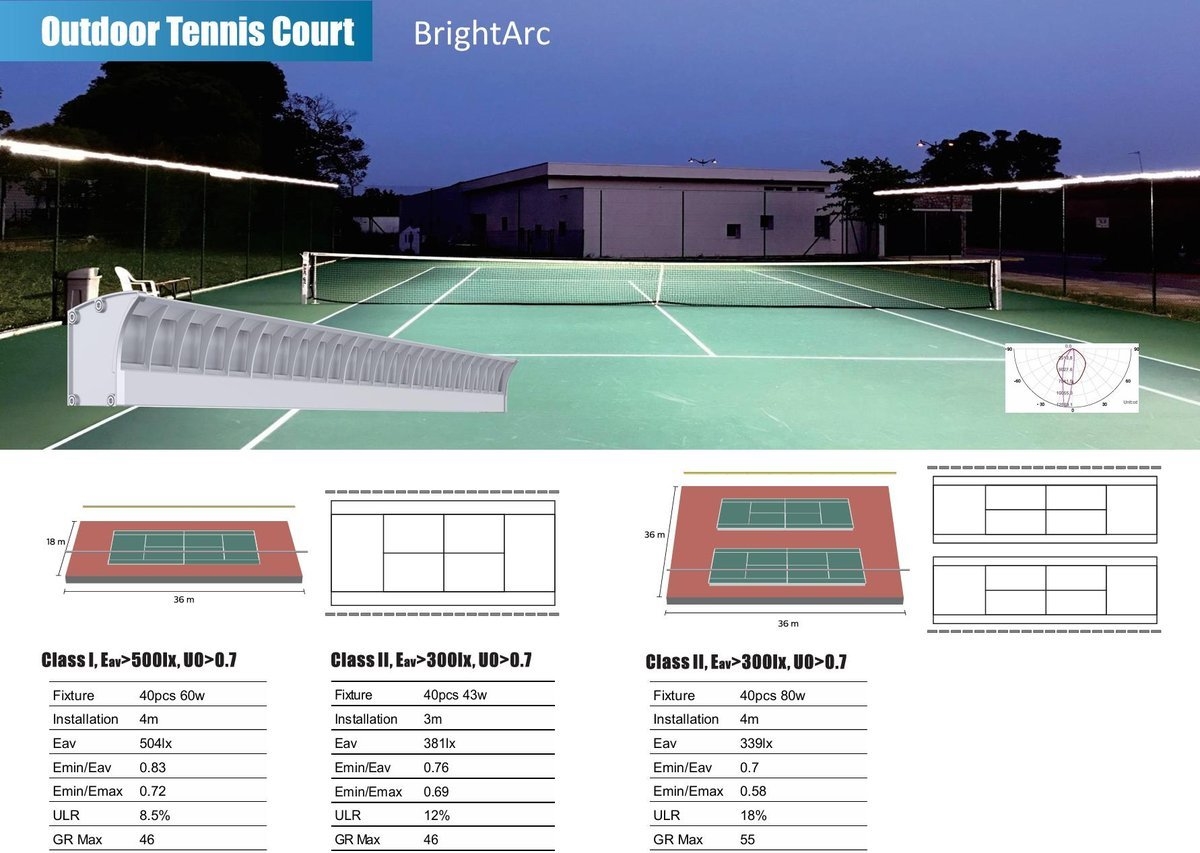

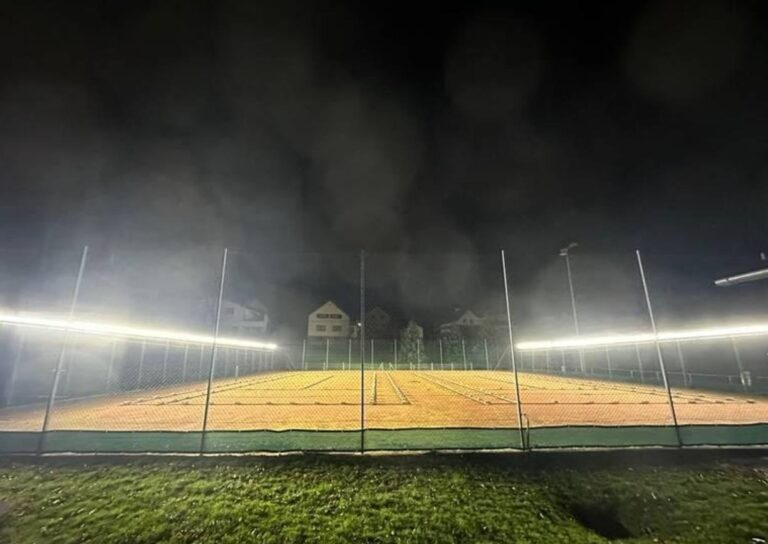

Tennis Club — Vienna
Fixture BrightArc Linear 80W
Configc 2 lines × 40pcs (6400W)
Average Lux 504 lx (Class I)
Uniformity Emin/Eav 0.83
ULR 8.5%
GR Max 46
Energy Savings 55% + reduction
“BrightArc Linear delivered tournament-ready lighting with zero compromise. Installation was remarkably simple — no poles, no heavy equipment required. Players immediately noticed the difference.”
— Markus Eder, Club Director, Vienna Tennis Academy

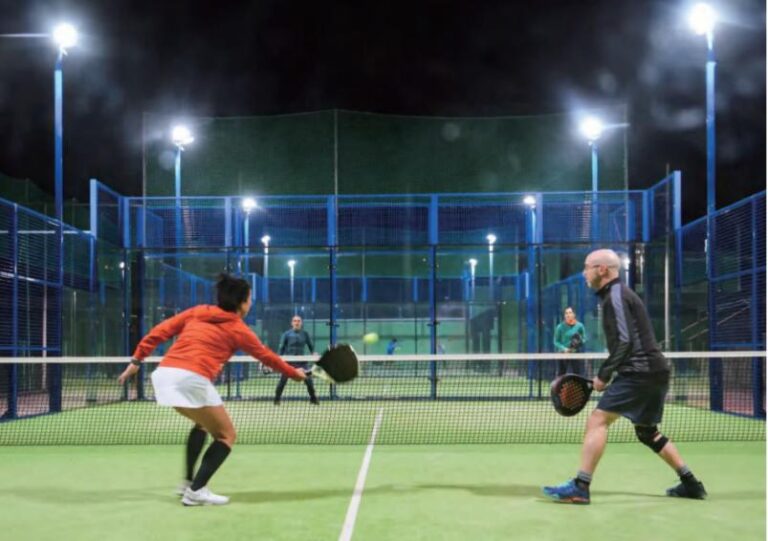

🇸🇬 Singapore, Southeast Asia
Community Padel Courts — Singapore
Fixture 4pcs 200w Guidelux Floodlights
Installation 6m, 0° Horizontal
Average Lux 315lx (Class II)
Uniformity Uo 0.8
Energy Savings 65%+ reduction
ULR 0%
“We installed Guidelux Floodlights, the lighting is even, bright, and perfect for night games. Our players love it, and maintenance has been zero.”
— David Lim, Court Manager, Singapore Padel Club
Technical Superiority

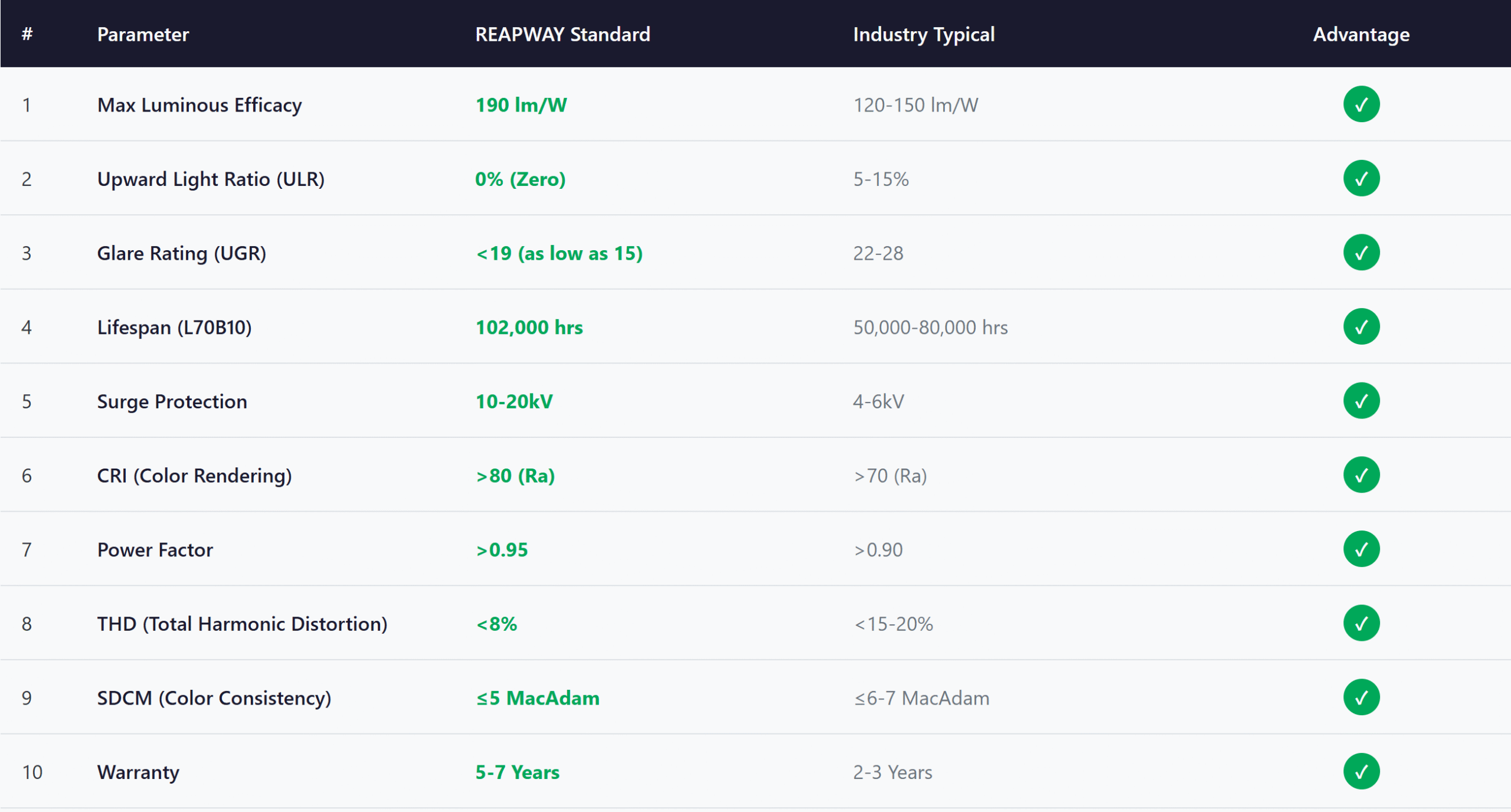

10 Technical Parameters vs. Industry Typical
Every Reapway fixture is built around professional-grade optical systems, premium drivers, and rigorous testing — delivering measurable performance advantages on the court.
Quality Assurance
5-Stage Testing & QC Process
Every component, every driver, every LED, every finished lamp — tested before shipment. Data-backed warranty guarantees.
IES Photometric Testing
Full IES file generation with certified photometric data. Accurate beam angle, lumen output, and light distribution verified per IESNA LM-79 standards.
Aging & Burn-In Test
100+ hour continuous burn-in at rated temperature. LM-80 compliant lumen maintenance data. Every batch verified before shipment.
Why Reapway
Why Customers Always Choose Us
We go beyond manufacturing — from R&D and custom module design to strict QC and global on-site support.
FRQ
Frequently Asked Questions
1: Quick answers for decision-makers evaluating sports lighting solutions.
1. How do I know which lighting class my project needs?

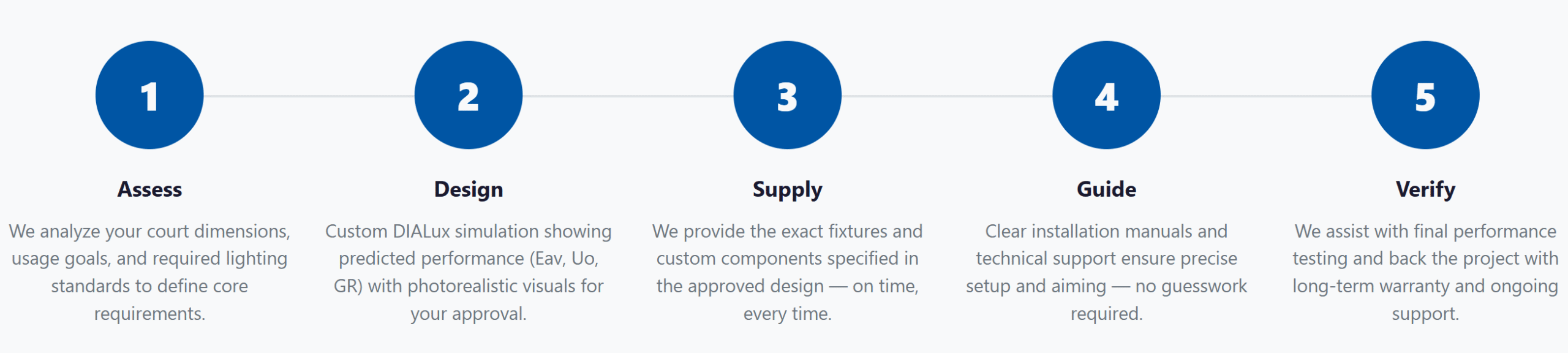

How We Work
From Concept to Light-On: Our 5-Step Process
A streamlined workflow ensuring precision and clarity from start to finish.
Get In Touch
Ready to Light Up Your Courts?
Get a free DIALux lighting simulation and tailored product recommendation — typically within 24 hours.
Tel: +86-0755-29761201 | Service Hours: 8:00 AM – 11:00 PM (GMT+8)
